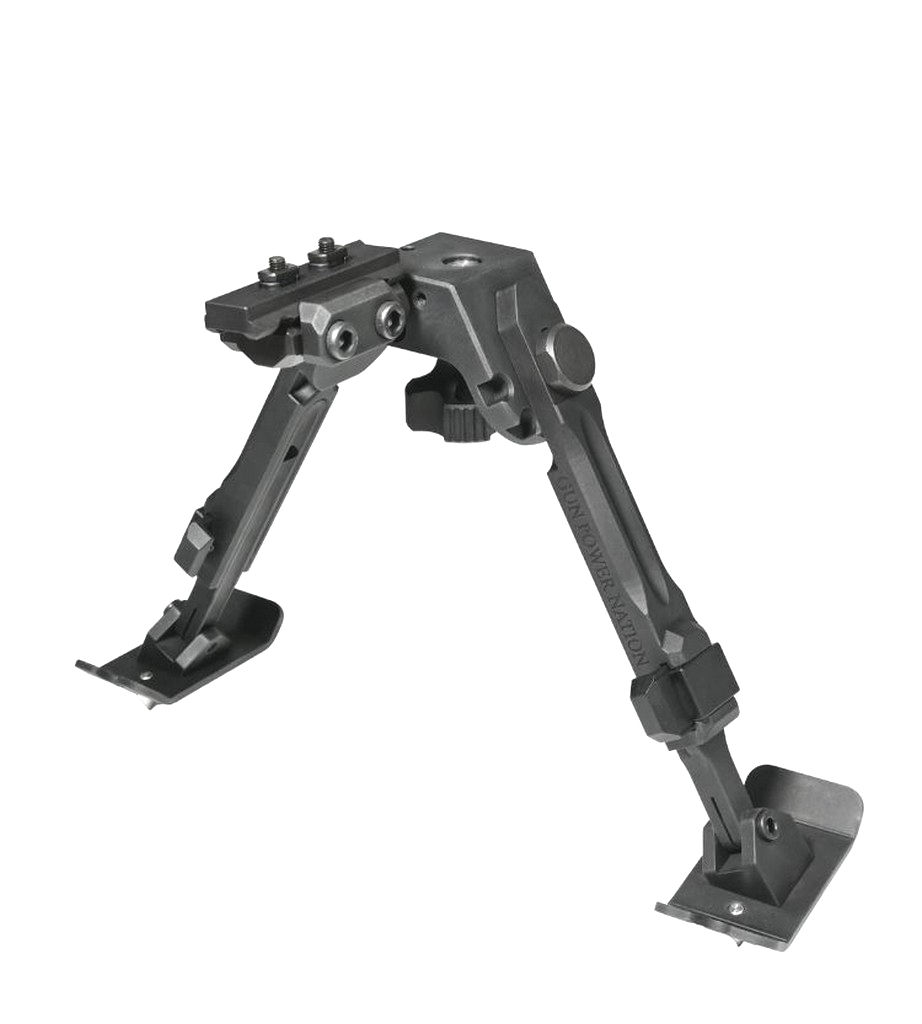

Telescopic Heavy Duty Bipods by GPN are designed to increase the stability of weapons during shooting, reduce vibrations and improve accuracy.
The bipods are designed for use in military, service and sports configurations and can be installed on most modern firearms.

Thanks to the quick-release fastener and universal mounting system, the bipods are easily adapted to different platforms and application conditions.
Design and features

The main structural elements are made by CNC milling, which ensures high accuracy, repeatability and strength.
On the side surfaces of the base there are grooves for fixing the legs in 5 different positions.
The bipods are installed in three positions at different angles of inclination (45, 90, and 135 degrees).
To change the position of the legs, you need to pull the leg down, turn it to the desired position and release it - the fixation occurs automatically.
The leg length is fixed with a button - when pressed, the leg can change its length.
The legs have telescopic height adjustment (4 positions).
The leg length adjustment range is 45 mm.
The leg length is fixed with a button - when pressed, the leg can change its length.
To quickly increase the length of the legs, simply pull it down.
A separate button is provided for folding the legs on each of them.
The foot of the leg is equipped with two steel cones for reliable fixation in the ground or on hard surfaces

Mounting and functionality

The bipods are equipped with a quick-release mount, which allows you to quickly remove them from the weapon.
To prevent accidental detachment, a locking handle (twist) is provided.
A Picatinny rail is included in the kit, designed for installing a quick-release mount on the weapon.
Can be installed both under the fore-end (bottom) and above the fore-end (top), which expands the options for use.
To change the position of the legs, you need to pull the leg down, turn it to the desired position and release it - the fixation occurs automatically.

Dimensions and adjustment

Minimum height of the bipod in the working position (when mounted under the fore-end): 180 mm
Maximum height of the bipod in the working position: 220 mm
Overall dimensions when folded (In transit), mm - 210x133x50
Overall dimensions when unfolded, mm - 225x320x114
Weight of the bipod without the Picatinny rail: 649g
Weight of the quick-release mount: 156g
Weight of the Picatinny rail L63 mm (included): 26g
Number of leg positions: 5
Number of height adjustment positions: 4
